Infusion set IS-127 P 180 cm logo CE

Product No.: V606128-ND
Name (abbreviation): Infusion set IS-127 P 180 cm
Version: Sterile-EO
Group packaging: 4 pack x 50 pcs
Shipping packaging: 200 pcs/carton
3.600 pcs/pallet
printInstructions for use

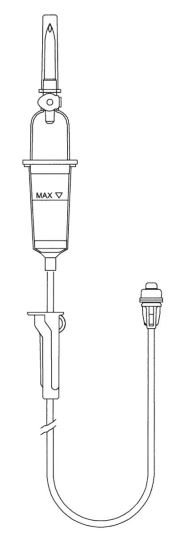

  • this set meets the requirements of the ČSN EN ISO 8536-8 standard
  • piercing spike transparent, dimensions according to ČSN EN ISO 8536-4
  • transparent PVC DEHP-free drip chamber with max. Line for liquid level adjustment and with collar for mounting in the optical drop sensor
  • drip tube for even droplet formation (20 drops = 1 ± 0.1 ml)
  • air supply means (aerator) equipped with an air hydrophobic filter against the intrusion of microorganisms (filter porosity 3.0 μm)
  • PVC hose made of flexible and strong material resistant to strain in the infusion pump
  • hose size 3.0/4.1 mm, length 180 cm
  • 15 μm infusion filter to capture solid particles
  • flow regulator with holder for fixing the end of the set (solves "Spaghetti syndrome"), flow setting in the range from zero to maximum
  • connection end with Male Luer Lock thread
  • safe and easily removable piercing spike and connection cone cover to maintain sterility

Note:

It must not be used: for infusing medicines that are incompatible with PVC (cytostatics) and for infusing light-sensitive medicines.

Benefits for users:

  • DEHP-free and LATEX-free materials used for production
  • pressure resistance up to 2 bar
  • universal use for gravity and overpressure infusion
  • production automation guaranteeing constant and high production quality

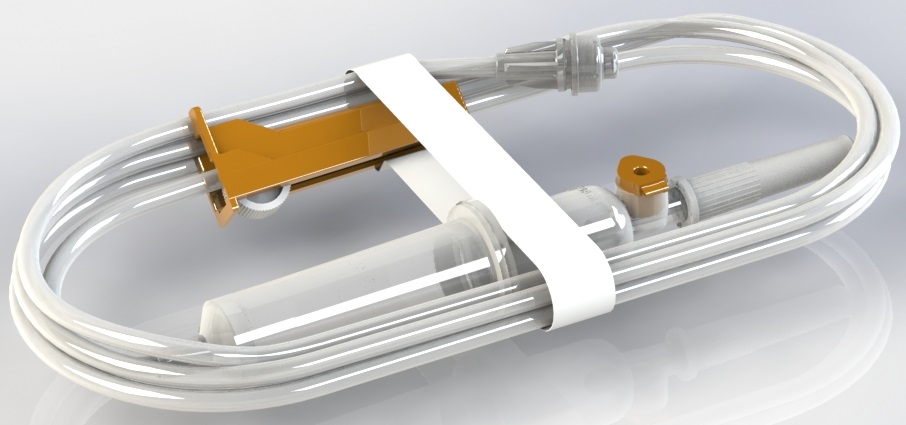

Infusion set IS-127 P is a single use medical device designed for therapeutic administration of infusion solutions from bottles (bags) by gravity or infusion pumps: INFUSOMAT P - manufacturer B / Braun
ARGUS A400, A404, A414, 707 - manufacturer Argus.
